Description
- Stainless steel 316 grade
- Finish: Satin Brushed/Chrome Mirror/Matte Black/Satin Gold

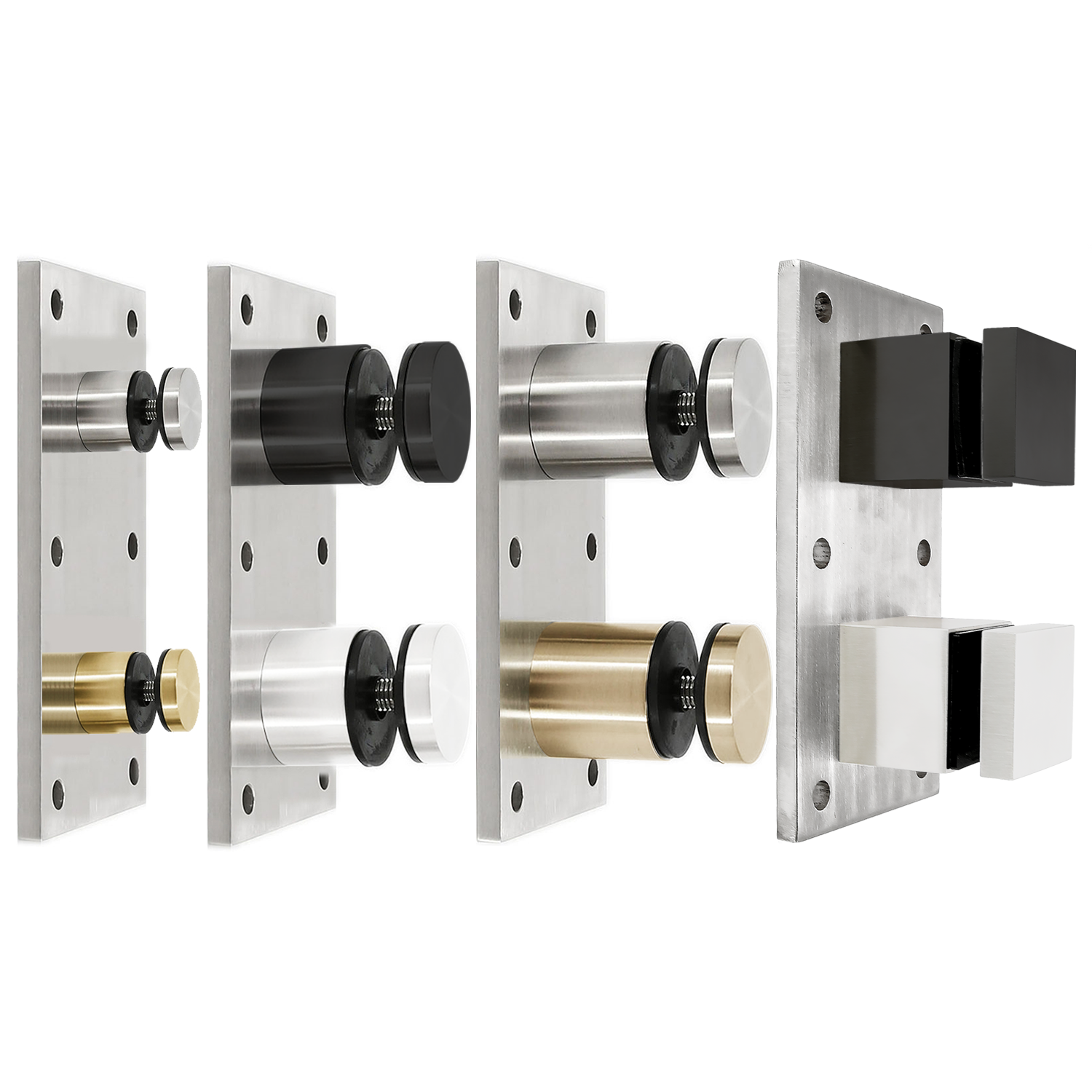

- Two standoffs with one stainless steel sheet
- Standoff: SO-025RD (1-1/2 inches diameter and 1-1/2 inches length with 3/8 inch bolt holes, bolts come with the package)/SO-030RD(2 inches diameter and 1-3/16 inches length with 1/2 inch bolt holes, bolts come with the package)/SO-050RD(2 inches diameter and 1-3/4 inches length with 1/2 inch bolt holes, bolts come with the package)/SO-050SQ(2″ x 2″ dimension and 1-3/4 inches length with 1/2 inch bolt holes, bolts come with the package)

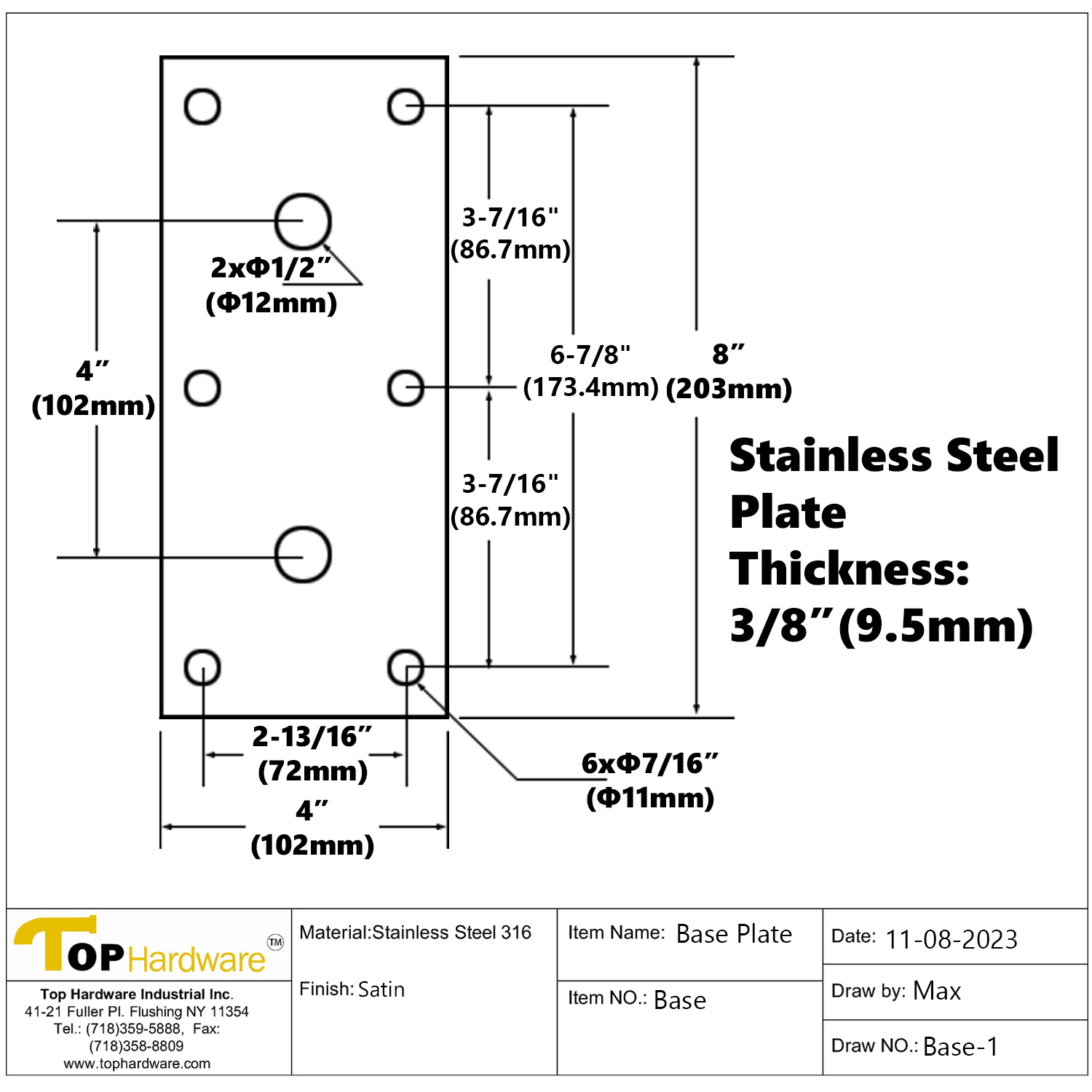

- Stainless Steel Sheet: 8″ x 4″ x 3/8″
- Performance Requirements:
- Support distributed load of 50 pounds per linear foot (0.73kN/M), applied horizontally at right angles in any direction to the top/grab rail.
- Support concentrated horizontal load of 200 pounds (0.89kN), applied in any direction at any point along top/grab rail.
- 50 lbs (0.22kN) on 1 sf (0.093m2) perpendicular to guard at any location
- Wind loads 25 psf or as otherwise specified.
- These loads need not to be assumed to act concurrently.
- Maximum deflection at top of glass is height/24.
- For use with 3/8”~5/8” or 1/2″ ~ 1″ tempered monolithic or tempered laminated glass
- Search SSWECH for a wrench
- Cat. No.: SDO-SHT
- View more Standoff
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 9 × 5 × 5 in |
| Color | Chrome Mirror Finish, Satin Gold, Matte Black Finish, Satin Brushed |
| Standoff | SO-025RD, SO-030RD, SO-050RD, SO-050SQ |
